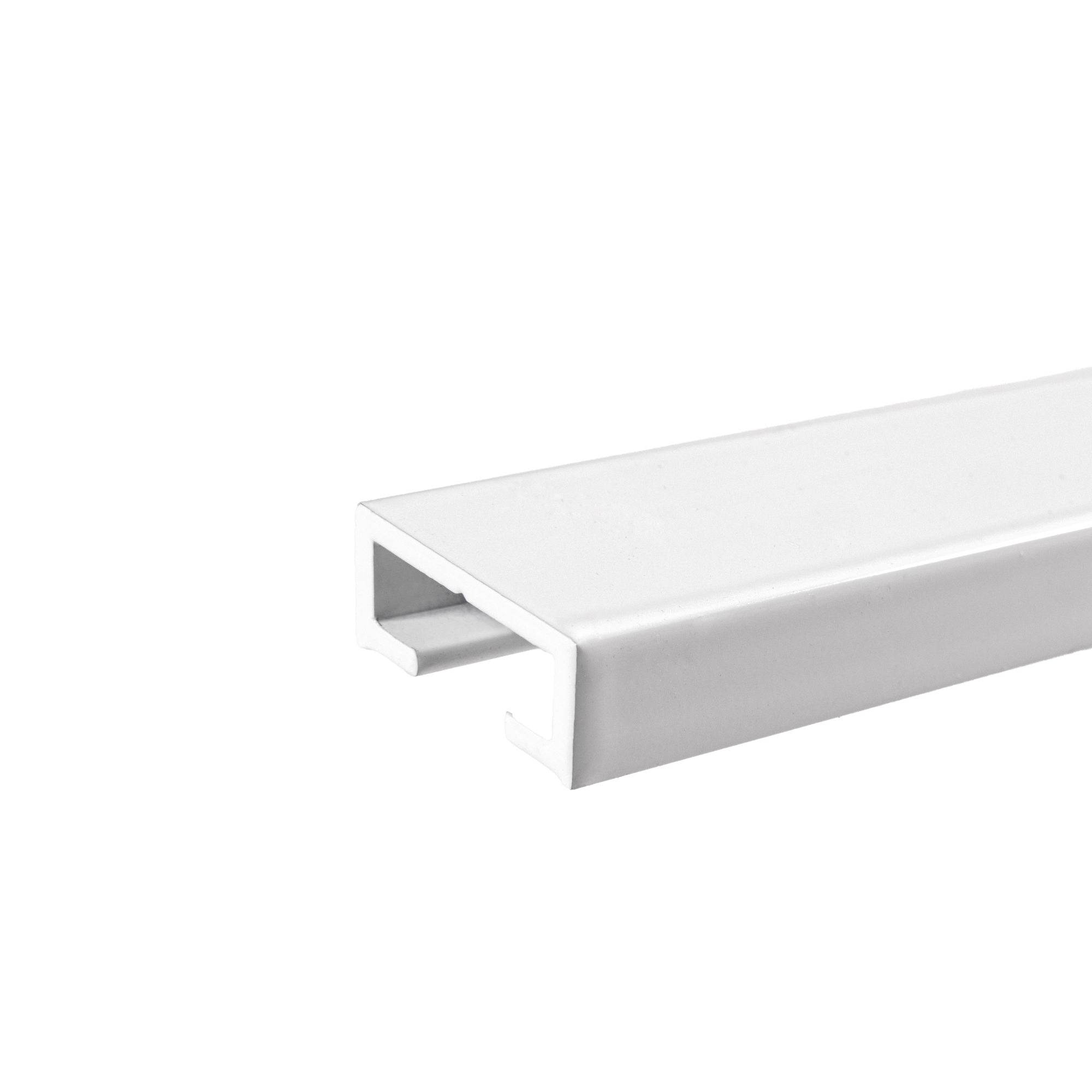

112/A7 W
Article number:
3045.1219W
Material
Aluminium EN AW 6060
Height (mm)
8 / 8.5 mm
Width (mm)
18 mm
Notch (mm)
7.5 mm
Delivery Lengths
2 m
Type of surface
Powder coating RAL 9016 white
Downloads

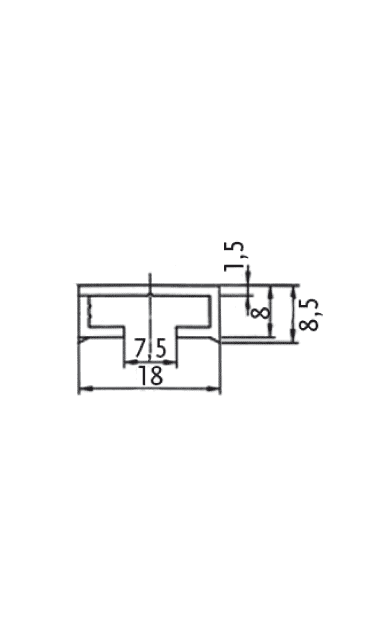

Engineering drawing 112/A7 WMatching products
Contact-Duo-Profiles
The Gelbau Contact-Duo-Profiles are ultra-flexible, one-piece rubber profiles made of EPDM or NBR, ideally matched to the closing edge of the gate or machine involved. The maximum actuating force lies well below the 150 N stipulated in the standard. In conjunction with the accessories offered and plug connection technology, the system can be easily and reliably assembled.
