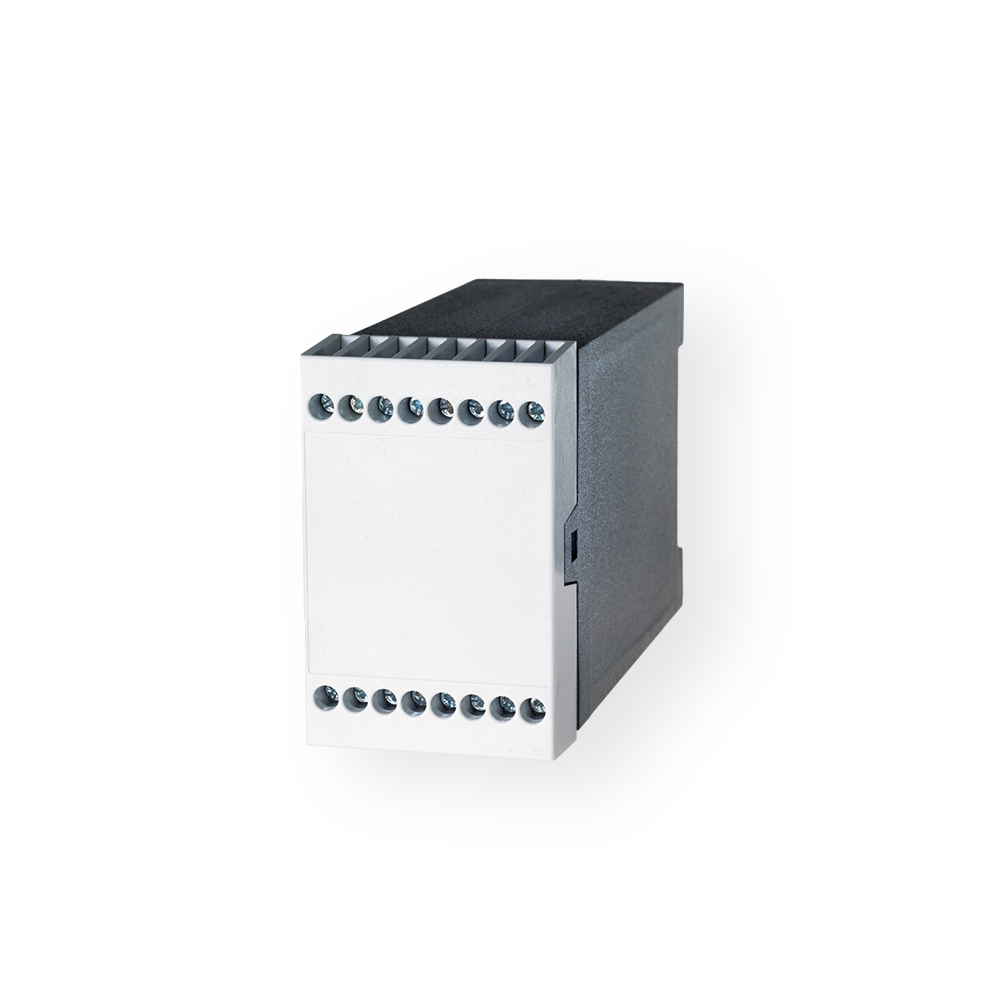

Housing type A 232.06

Control Cabinet

Articelnumber : 3002.3206
Safety Category

1

Performance Level

C

Functions Input

2 switching strips

Functions Output

2 outputs each with 1 relay contact (NC)

Supply Voltage

24 V DC

Rated Power

4 VA

Power Pack Potential-Isolated

Yes

Relay Contacts 13 – 14; 21 – 24 Max. Switching Voltage AC/DC

250 V/24 V

Relay Contacts 13 – 14; 21 – 24 Max. Switching Current AC/DC

6 A/2 A

Perm. Operating Temperature

–20..+55 °C

Housing Width

45 mm

Housing Height

75 mm

Housing Depth

120 mm

Degree of Protection for Housing/Contacts

IP 40/IP 20

Weight

390 g

Tests

EN ISO 13849-1:2015
