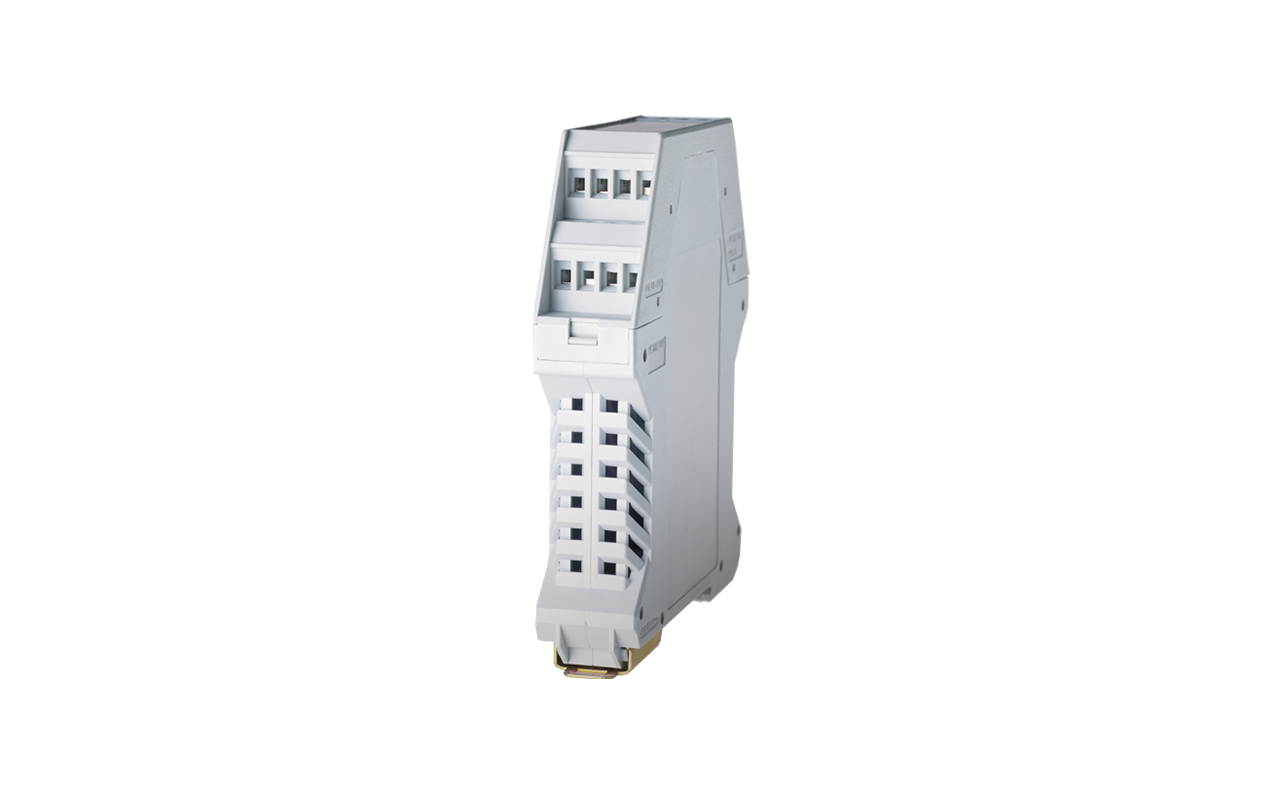

Control Cabinet
Articelnumber : 3004.5242
Safety Category
3
Performance Level
E
Functions Input
1 switching strip
Supply Voltage
24 – 230 V AC/ 24 – 110 V DC
Rated Power
4 VA/6 VA
Power Pack Potential-Isolated
yes
Relay Contacts 13 – 14; 21 – 24 Max. Switching Voltage AC/DC
250 V/24 V
Relay Contacts 13 – 14; 21 – 24 Max. Switching Current AC/DC
4 A/2 A
Perm. Operating Temperature
–20..+55 °C
Housing Width
22.5 mm
Housing Height
100 mm
Housing Depth
110 mm
Degree of Protection for Housing/Contacts
IP 20
Weight
190 g
Tests
EN ISO 13849-1:2008, EN 62061:2005
