Article number: 3100.0310I
Overall Height (without foot)

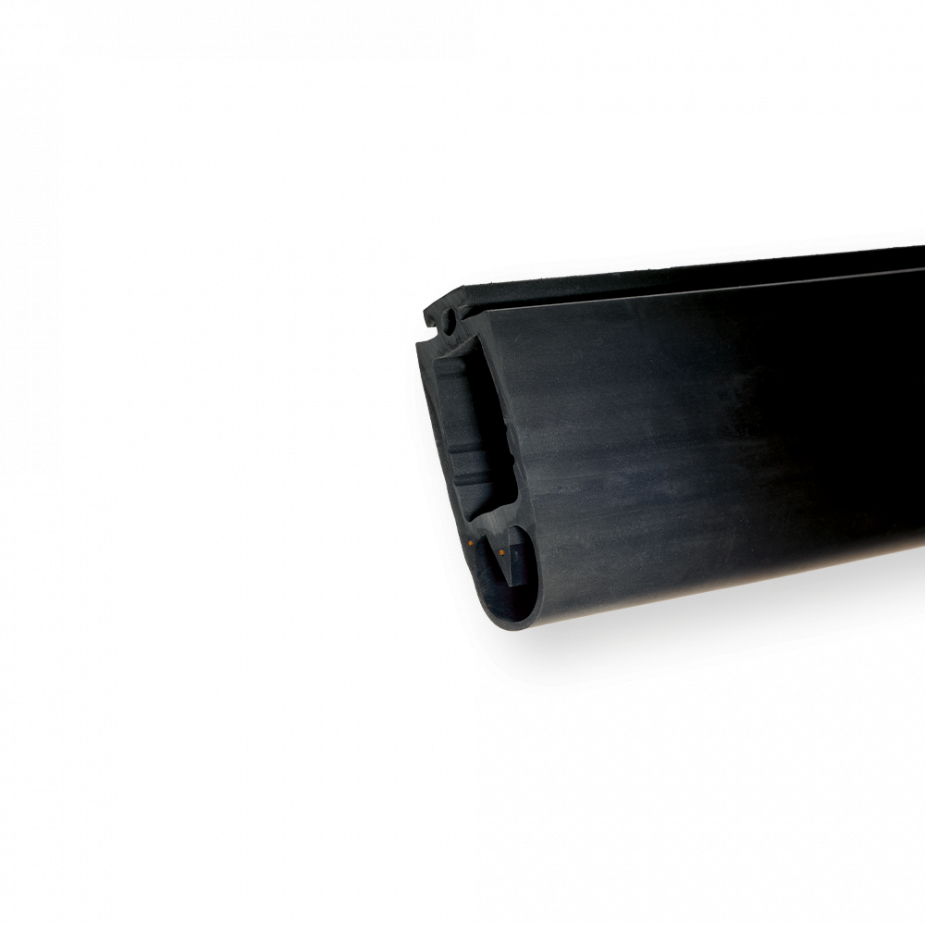

Switching Head, Insulated
End caps with circumferential edge
The end caps are a part of the system components of the Gelbau Contact-Duo and Quadro-Profiles. They serve to seal off the ends of the switching strips in a moistureproof configuration. The Contact-Optima-Profile end caps are used only to close off the compensation chamber. Various types of connection are available. The caps can be supplied in NBR and EPDM, and in different colours, to suit the profiles concerned.
Connecting cable with plug connector
The connecting cable with plug connector is a system component that is used to establish the link between the switching strip and the evaluator or control system on the connection side. It is available in lengths from 0.35 m to 15 m.
Terminating plug connector with resistor
The terminating plug connector with resistor is a system component that constitutes the switching strip’s electrical termination in conjunction with a resistance evaluator. The resistance value is 8,2 kΩ.
The stop buffers are not a part of the system, but prevent the switching strip suffering from a ground impact when the gate is lowered, thus extending its useful lifetime. Depending on the profile height involved, the stop buffers are available in the appropriate sizes, in black. The scope of delivery also includes a hammerhead screw for attaching the buffer to the mounting rail.
To affix the safety switching strips to the gate, machine or system involved, you can choose from a wide range of mounting rails. Depending on the application and profile types concerned, the mounting rails can be supplied in steel or aluminium. Different models (e. g. with and without a flange) provide multifarious options for mounting configurations. If the customer so requests, Gelbau also offers an option for supplying the C-rails with boreholes, press-fit threaded bolts or press-fit nuts.
