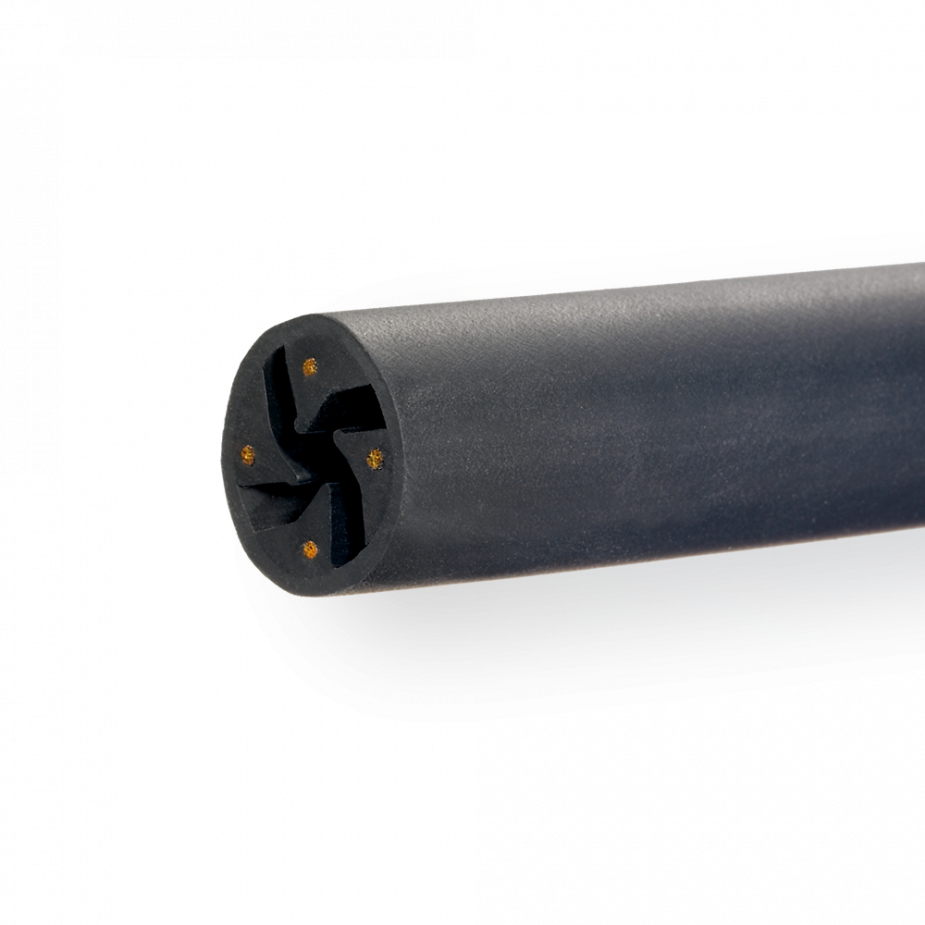

Article number: 3100.6000F
Flexible copper wire, increased bending radius
Switching Head, Insulated
Max. 2.5 m
Min. Diameter, Sheath Profile
DownloadsEngineering drawing 060.00F Datasheet 060.00F
End caps with circumferential edge
The end caps are a part of the system components of the Gelbau Contact-Duo and Quadro-Profiles. They serve to seal off the ends of the switching strips in a moistureproof configuration. The Contact-Optima-Profile end caps are used only to close off the compensation chamber. Various types of connection are available. The caps can be supplied in NBR and EPDM, and in different colours, to suit the profiles concerned.
Connecting cable with plug connector
The connecting cable with plug connector is a system component that is used to establish the link between the switching strip and the evaluator or control system on the connection side. It is available in lengths from 0.35 m to 15 m.
Terminating plug connector with resistor
The terminating plug connector with resistor is a system component that constitutes the switching strip’s electrical termination in conjunction with a resistance evaluator. The resistance value is 8,2 kΩ.
Flexible wire jumpers
The wire jumpers are used for the Quadro-Profiles, and are here a part of the system. They form the cross-connection at the termination side.
